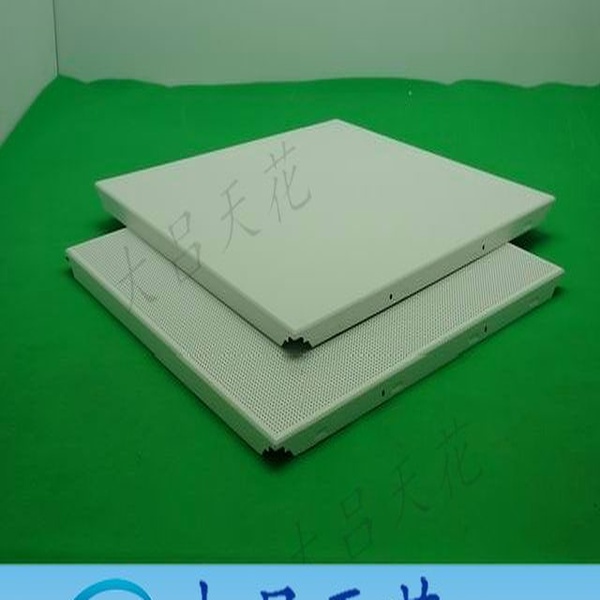

Lay-in Aluminum Ceiling / Clip-in Tiles

E Expert Experience

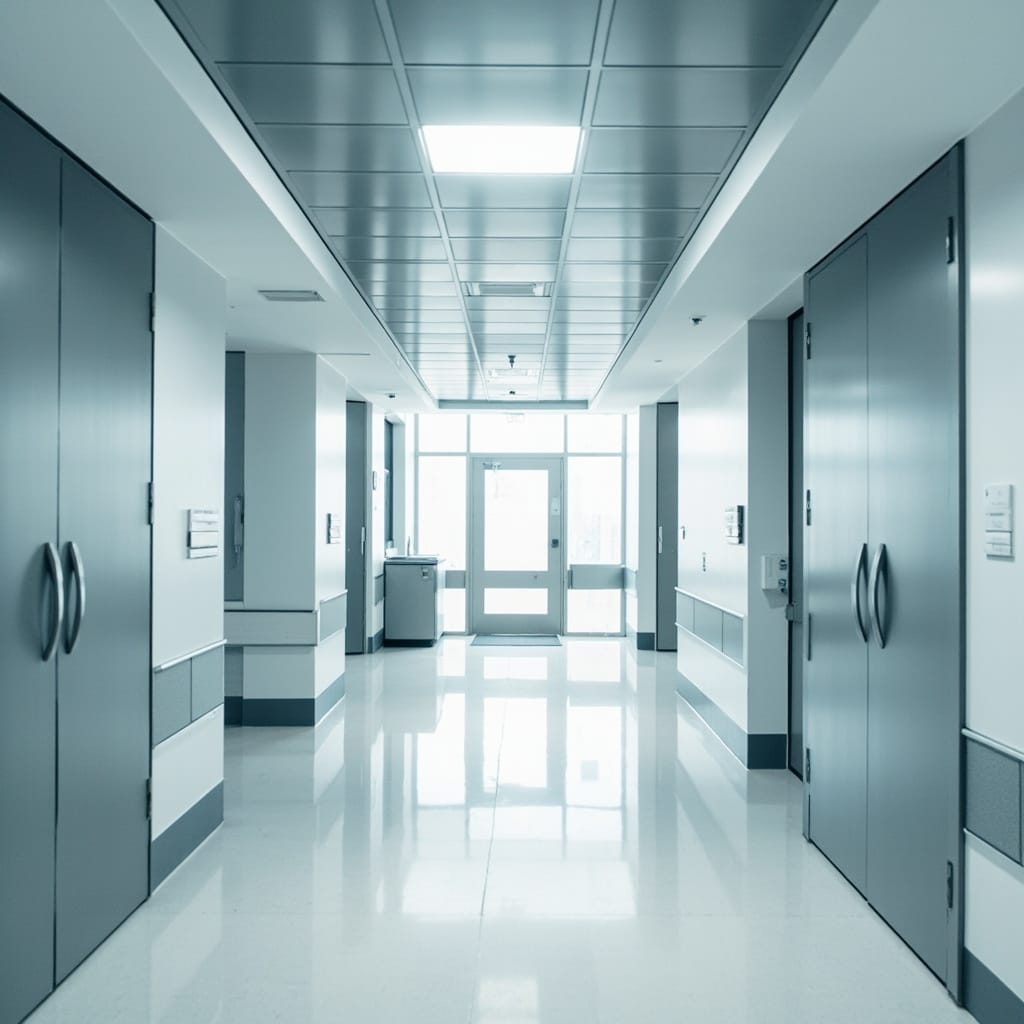

In hospital corridors, the biggest complaint I hear from maintenance teams is ceiling tiles that getdamaged by gurney impacts or trap moisture leading to mold. We developed a reinforced aluminum ceiling tile with 2.0mm thickness and internal ribbing that withstands repeated impacts without denting. For a 1,200-bed hospital in Riyadh, we supplied 48,000 pieces over 18 months—no replacements needed after 3 years of operation. In commercial kitchens, the challenge is grease-laden air and high-pressure washing. Our tiles use a seamless edge-fold construction (no open joints where grease can accumulate) and survive 1,500 PSI washdown per NSF protocol.

T Technical Specifications

**Core Specifications:**
• Tile sizes: 300×300mm / 600×600mm / 600×1200mm / Custom
• Thickness: 0.6mm – 2.0mm
• Material: AA1100 / AA3003-H24
• Surface finish: Polyester powder coat (60μm standard) / PVDF / Anti-bacterial powder
• Acoustic option: 50mm mineral wool or glass fiber fleece backing (NRC 0.85+)
• Fire rating: A2-s1,d0 / Class A (ASTM E84)
• Load bearing: 15kg/m² (without hanger) / 25kg/m² with reinforced hangers
• Edge detail: Lay-in / Clip-in / Hook-on / Neoprene gasket
• Humidity resistance: 95% RH (condensation-resistant coating available)
• Clean room classification: ISO Class 5 compatible (with appropriate sealants)

Applications
