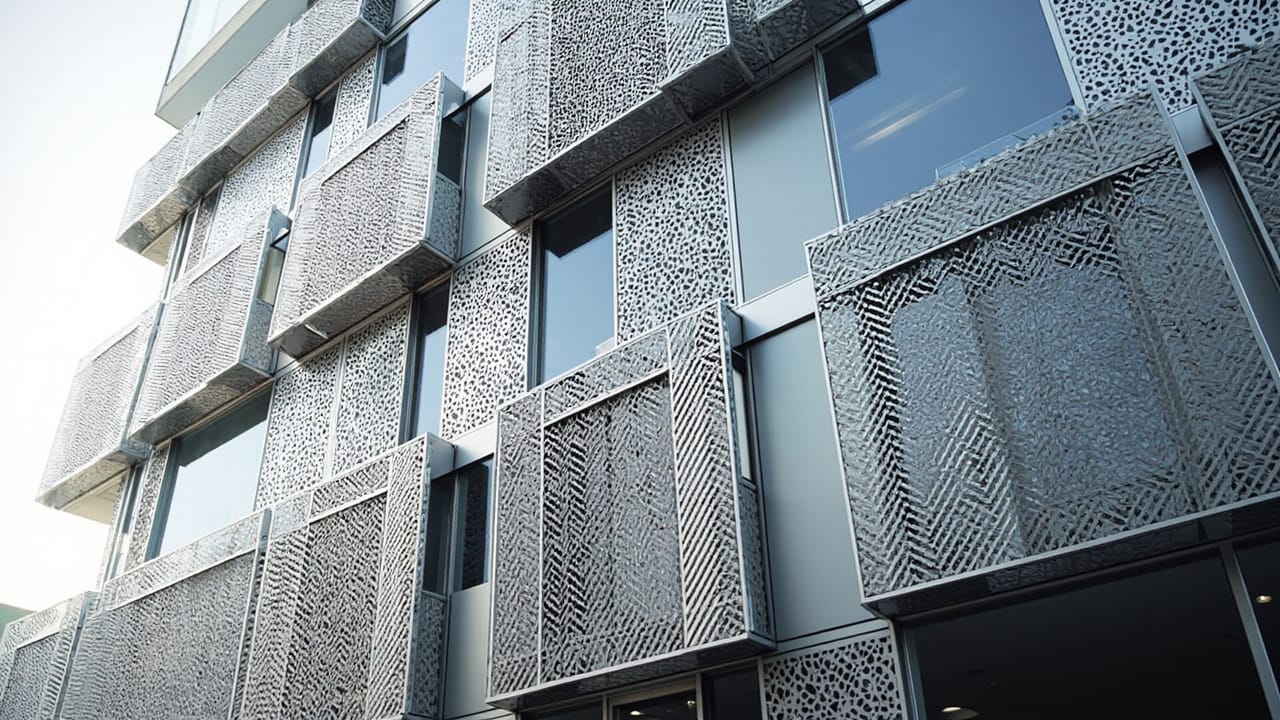

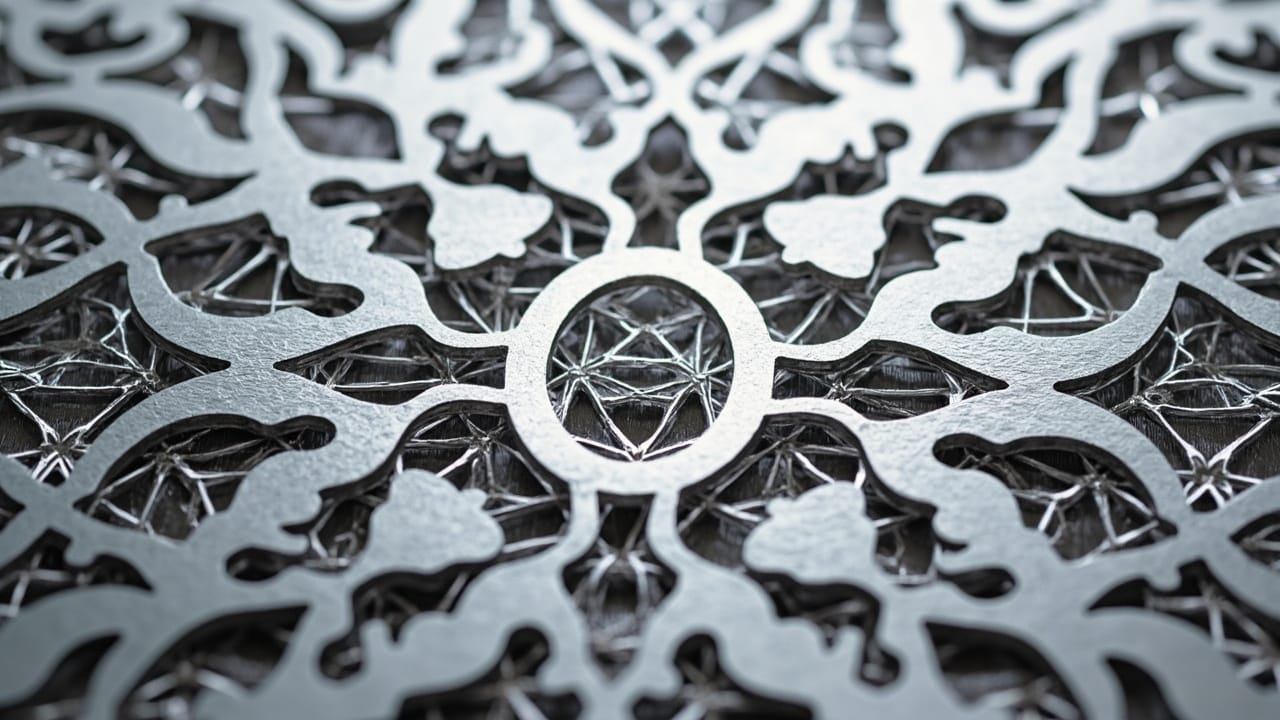

Carved / CNC Pattern Aluminum Panel
Core Data
Precision: ±0.1mm
Thickness: 1.5-3.0mm
Coating: PVDF/PE
Warranty: 15-25 Years
Capacity: 30000㎡/month
Delivery: 7-30 Days
E Expert Experience

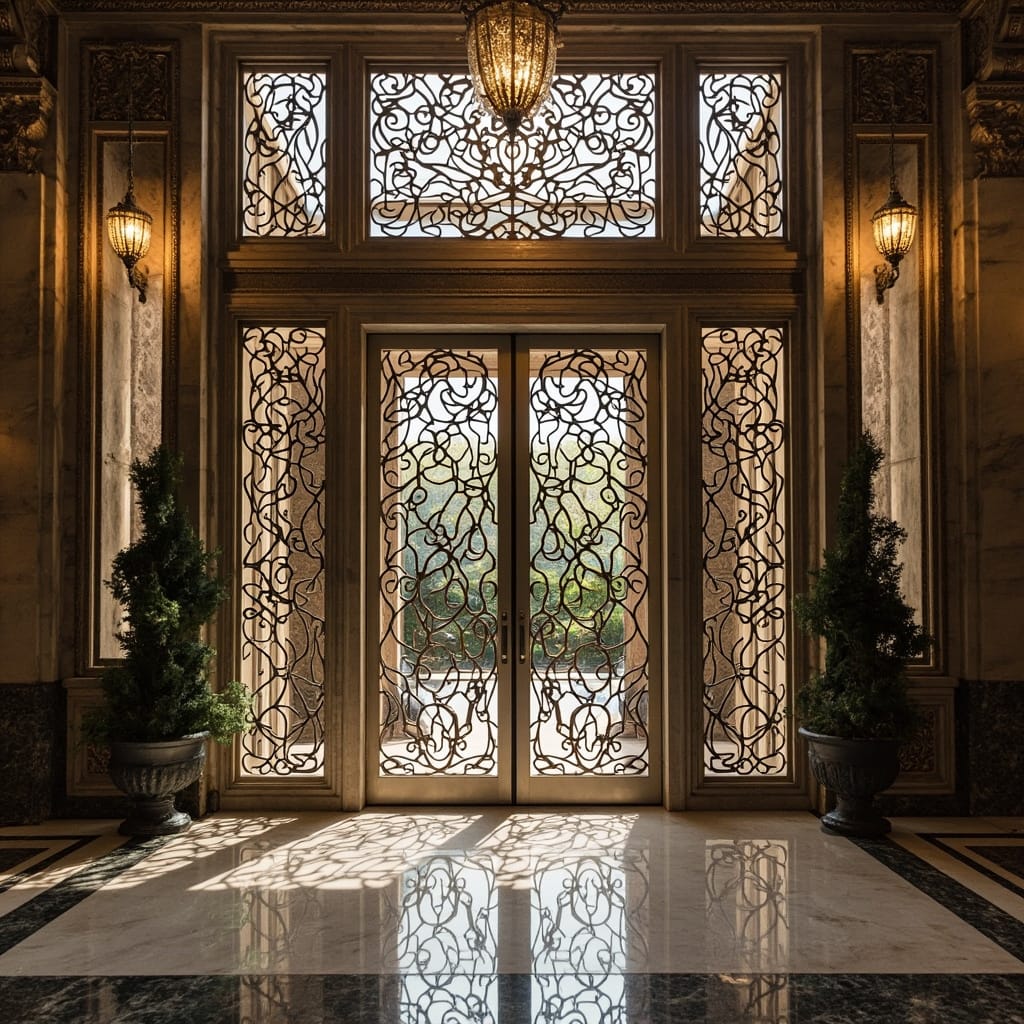

I recently completed a 12,000sqm carved aluminum facade for a luxury hotel in Doha. The challenge was reproducing an intricate Islamic geometric pattern at architectural scale—each 星状六边形单元 needed to align perfectly across 48-meter tall panels. We used 5-axis CNC routing with a positioning accuracy of ±0.05mm, and our craftsmen performed manual polish passes on every edge after routing. The result was a seamless, Museum-of-Islamic-Art-level surface that brought the architect's vision to life. This is the difference between a factory that simply machines metal and one that understands architectural intent.
T Technical Specifications
**Core Specifications:** • Panel thickness: 2.5mm – 6.0mm (based on pattern complexity and wind load) • Processing: 3-axis / 5-axis CNC routing, laser cutting • Pattern resolution: Line widths from 3mm to unlimited • Materials: AA1100, AA3003, AA5052 aluminum • Max single-piece size: 2000mm × 6000mm (larger panels are split and joined) • Surface finish: Mill finish / Powder coat / PVDF / Anodized • Fire rating: A2-s1,d0 available (EN 13501-1) • File formats: DXF, DWG, AI, PDF, STEP **Engineering Notes:** Carved panels require structural stiffeners (ribs) at back face for wind load resistance. We provide reinforcement suggestions and structural calculations as part of CAD package. Expansion joints must be designed per local thermal movement coefficients.

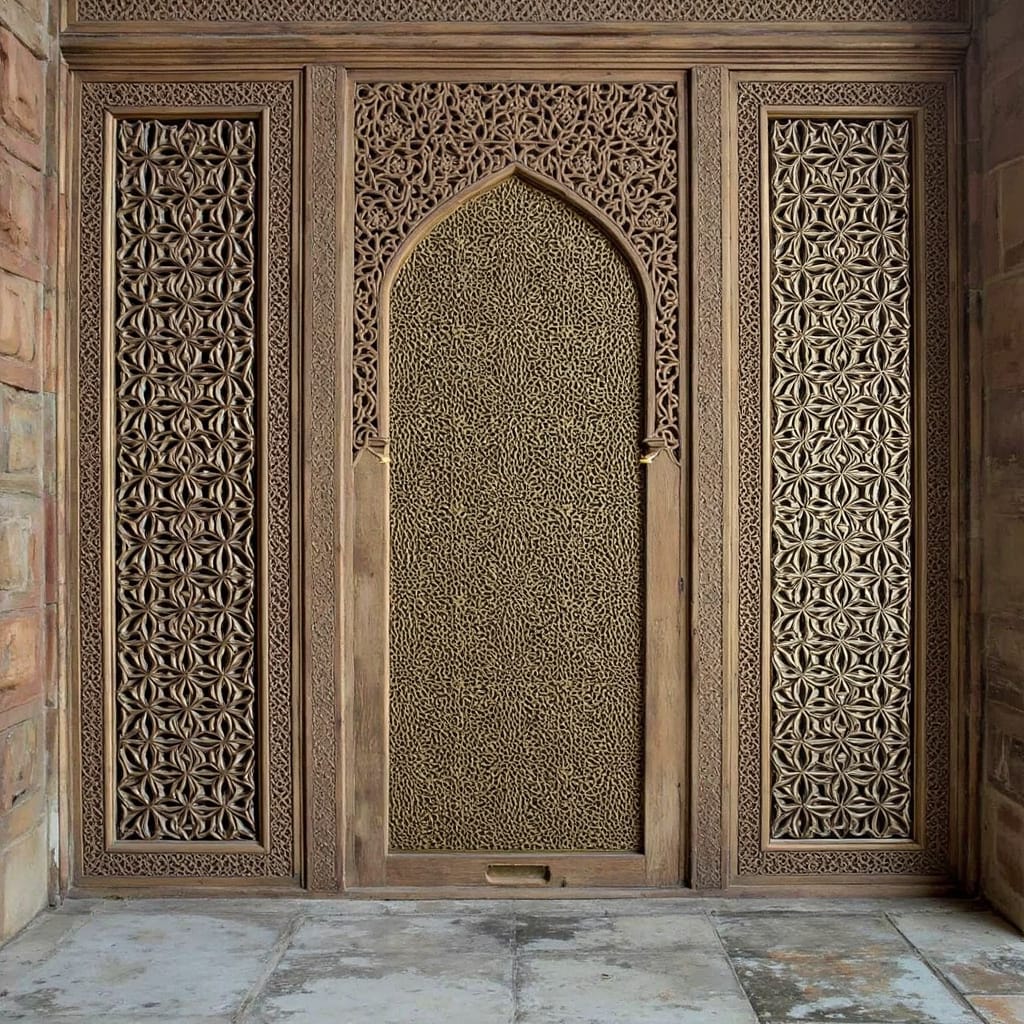

Applications
Metro Stations
Stadiums
Hotels
Commercial
Industrial
Facades
