Wood Grain Aluminum Panel

E Expert Experience

I've been specifying木纹铝单板 for hotel and resort projects across the Middle East for over a decade, and the question I get most from architects is: "Can it really look like wood?" The answer is yes—but the quality gap between manufacturers is enormous. The critical difference is the transfer process temperature and pressure consistency. Our production line uses servo-controlled hydraulic presses with ±1°C temperature variance across the platen, eliminating the "patchy" or "faded" appearance that plagues inferior products. I recently visited a Saudi resort project where our 3-year-old wood grain panels look identical to the day they were installed, while a competitor's panels 200 meters away had already begun surface delamination. We also offer custom wood species matching—from oak to teak to walnut—and can match any RAL or Pantone reference your designer provides.

T Technical Specifications

**Core Specifications:**
• Base alloy: AA3003-H24 (optimized for coating adhesion)
• Panel thickness: 2.0mm – 3.0mm
• Wood grain layer: Heat-transfer printing at 180–200°C, 8–12 MPa pressure
• Top coat: Polyester powder (interior) / PVDF (coastal/exterior), 60–80μm
• Fire rating: A2-s1,d0 (EN 13501-1) / Class A (ASTM E84)
• Adhesion: 0 (ISO 2409 cross-cut tape test, no detachment)
• Weather resistance: 2000h salt spray (ISO 9227), no edge creep or blistering
• Color options: 40+ standard wood species; custom matching available
• Warranty: 10–20 years based on coating system

**Why Heat-Transfer vs. Roller Coating?** Heat-transfer embeds the pattern into the coating layer at molecular level, providing deeper color penetration and superior scratch resistance compared to surface roller coating.

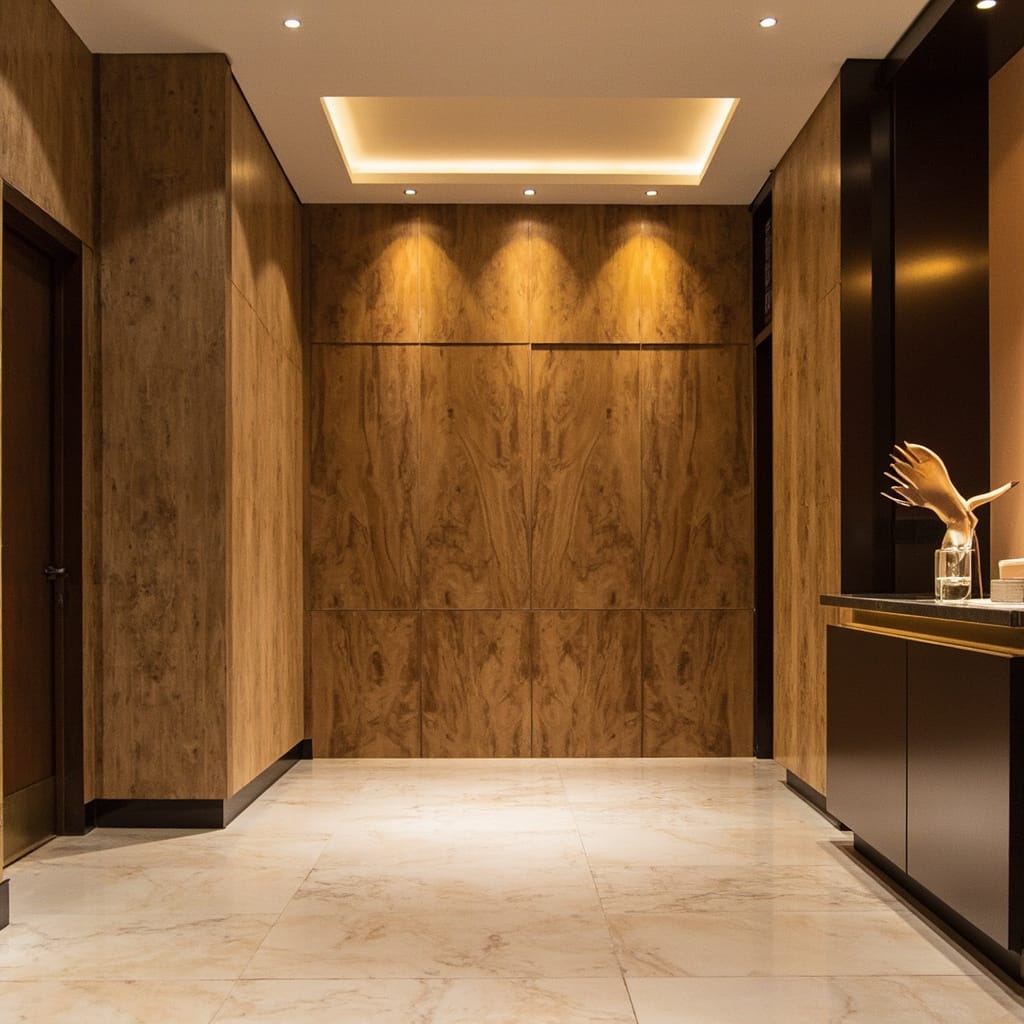

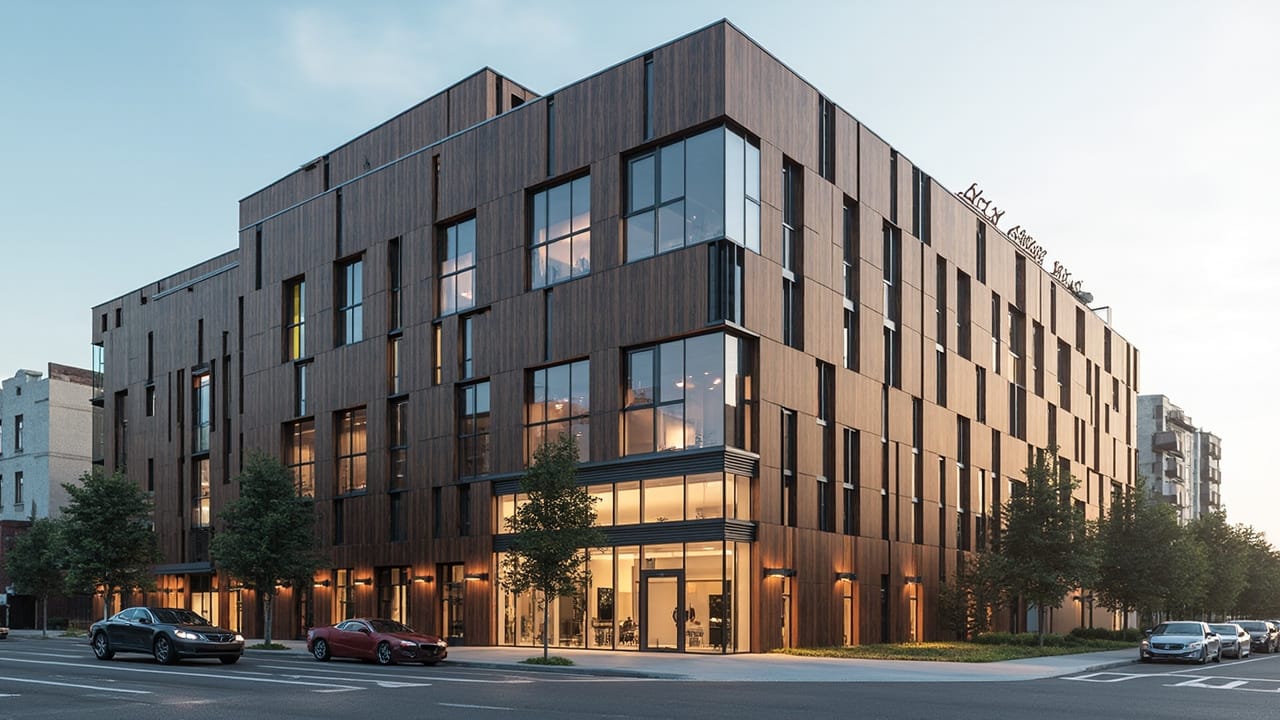

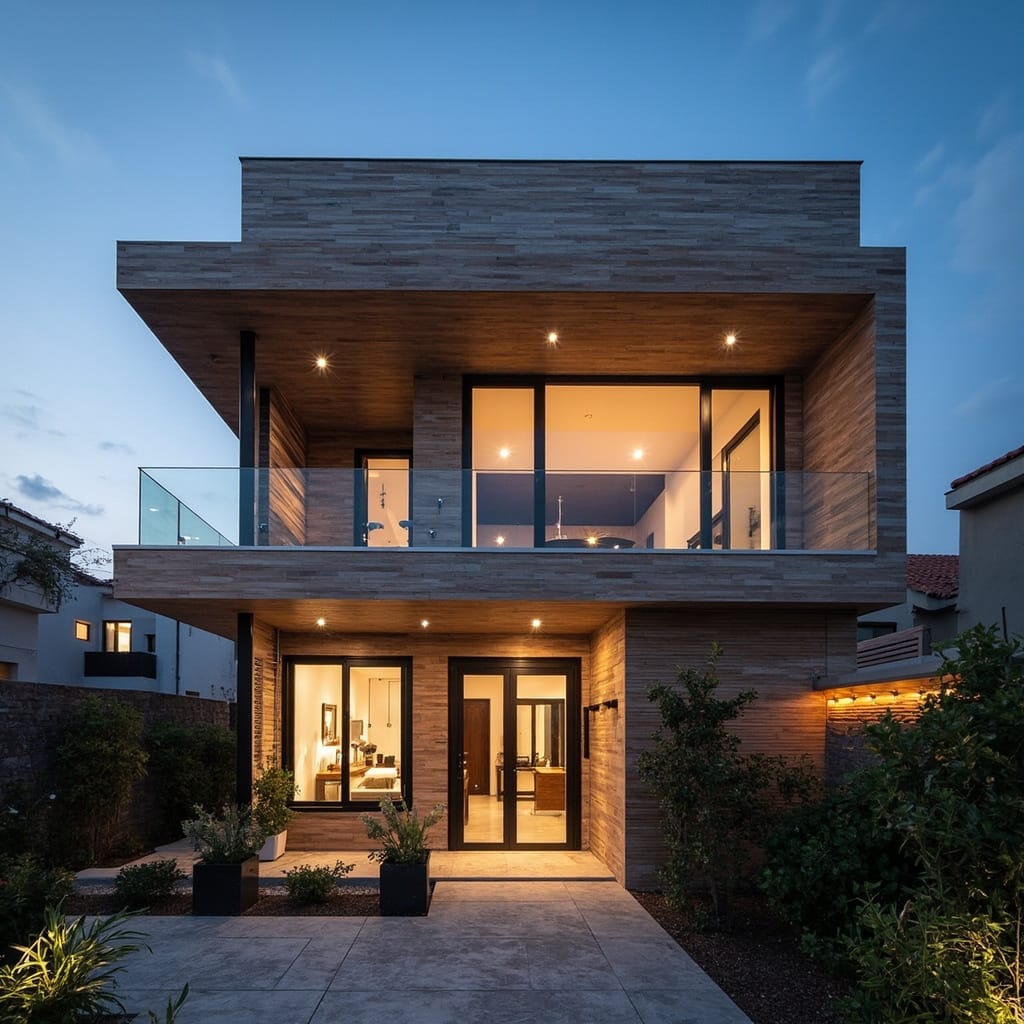

Applications
